Thermocouple

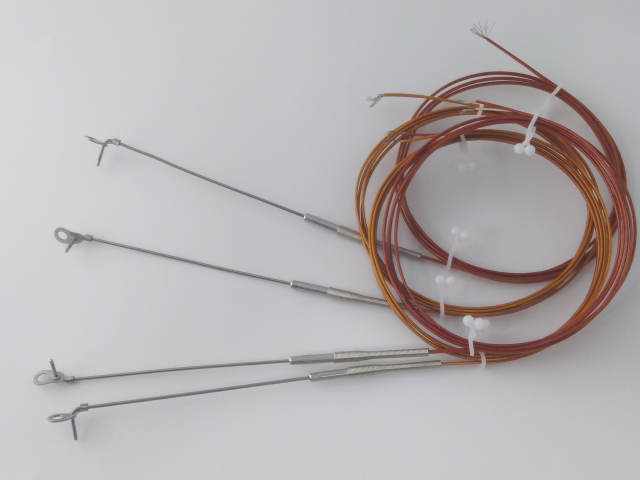

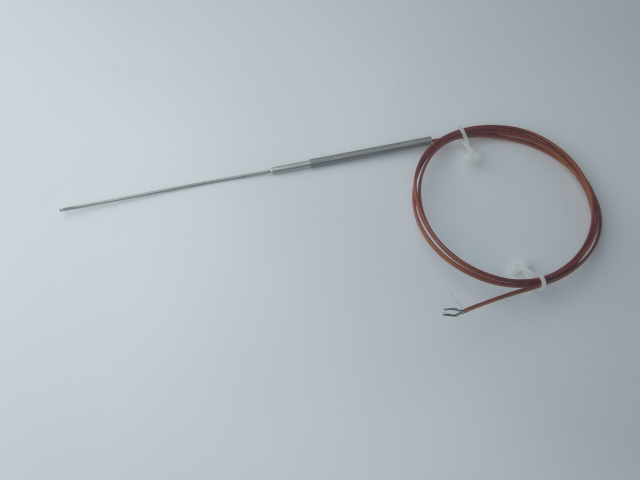

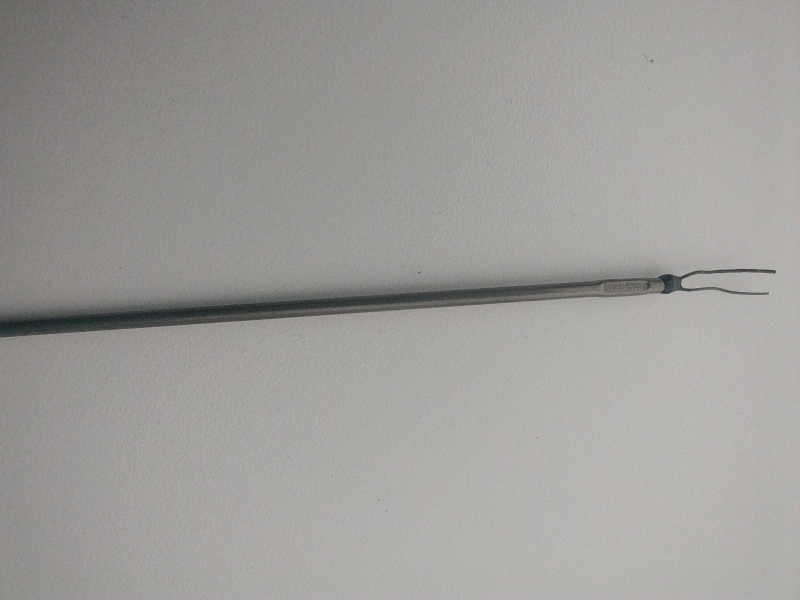

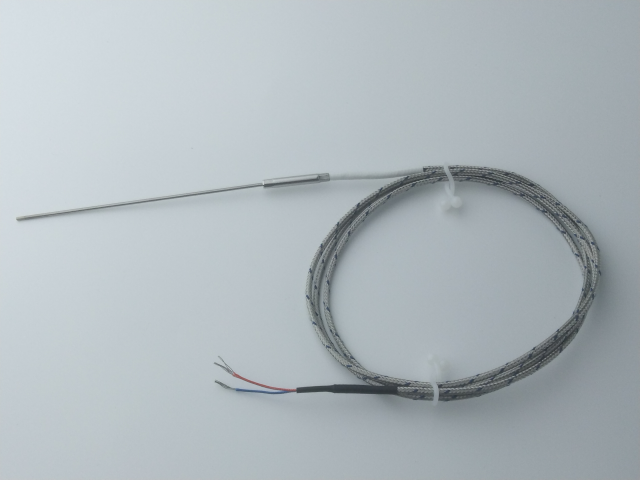

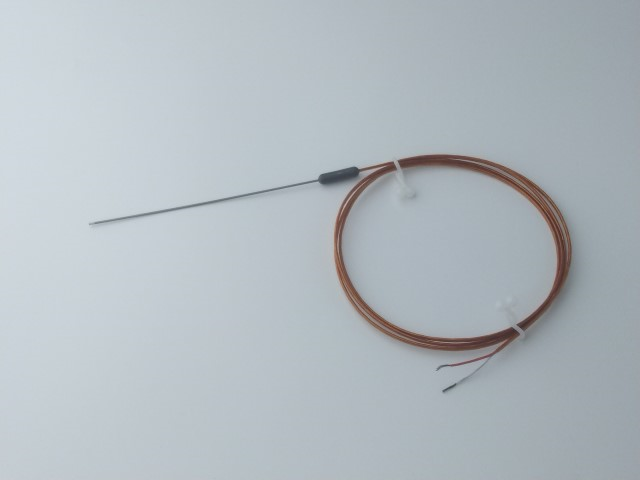

Thermocouple for Nozzle
Ruizhiming manufacture MI thermocouple for hot runner nozzles. Technical features:
- Sheath material: Stainless steel 304
- Type: standard J, optional K
- Transition: high temperature resin or stainless steel
- Class: standard
- insulation resistance: ≥ 10 MΩ at 250 V DC
- Sizes: Diameter Ø1.0mm, Ø1.5mm. MI cable length 50,80,100,120,150,200,250,300,350,400mm. Leads length 1,1.5,2m. Lengths can be customized. Leads insulation can be polyimide or fiberglass with metal-weaved cover.

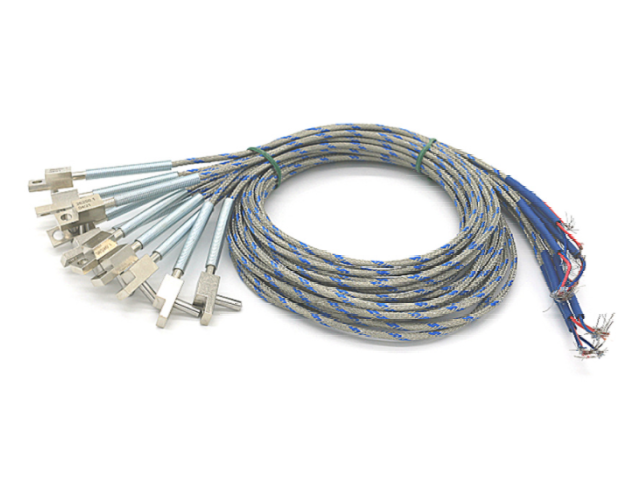

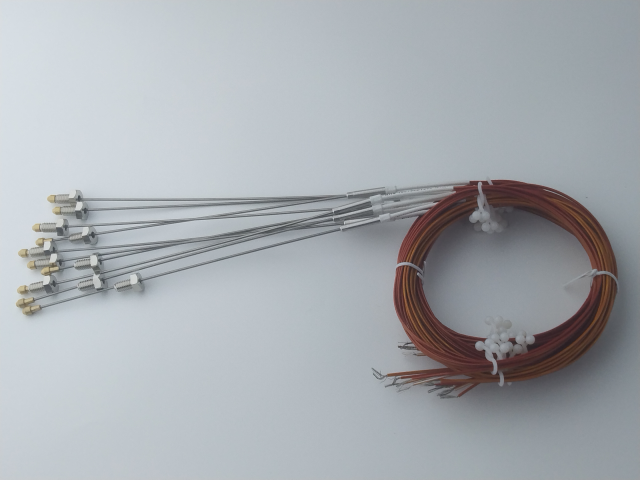

Thermocouple for Manifold
Ruizhiming manufacture thermocouple for manifold. Technical features:
